For small systems & aquariums up to 40 gallons
The new Hydroponics chiller line is the next generation of TECO chillers–used by consumers and professionals for over two decades. New changes include an increase in cooling efficiency and improved usability, functionality, and durability.
EFFICIENT COOLING TECHNOLOGY
Internationally-recognized high-end compressors and titanium coaxial heat exchangers provide high performance, low energy consumption, and low noise levels.

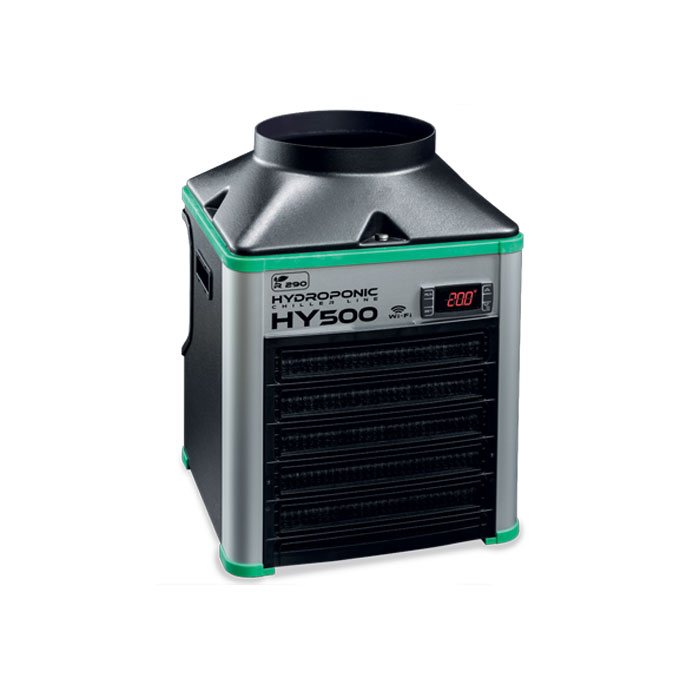

BUILT-IN HEATER
The Hydroponics HY-500 comes standard with a heater built into the unit (previously, had to be purchased and installed separately). The built-in heater provides better control over water temperatures and can be operated through the digital thermostat.
DIGITAL THERMOSTAT
Intuitive controller with accurate temperature detection from 18° -22 ° C. Closed loop temperature control system with an extremely tight differential of 1°C. Displays in °F or °C, and audible alarms for certain situations.
EFFICIENT DESIGN
A solid and durable structure designed to guarantee near perfect protection against corrosion. Rotatable in-set water connections and smaller form-factor help facilitate placement of chiller in confined spaces.
Specifications:
Aquarium Size up to 120 gallons
Horsepower 1/6 HP
Wifi Capable YES
Maximum Pressure 8.7 psi
Minimum Flow Rate 106 gallons per hour
Maximum Flow Rate 211 gallons per hour
Water Inlet/Outlet Thread 3/4″ SAE thread (19mm)
Inlet/Outlet Barb Fitting D 5/8″ (0.63″ or 16 mm)
Exchanger Titanium
Supply 120V-60Hz
Power Consumption 225 Watts
Gas/Refrigerant R290
Minimum Set Point 60.8°F
Maximum Set Point 71.6°F
Weight 36.4 lbs (16.5 kg)
Dimensions 12.2″ x 12.2″ x 16.38″
