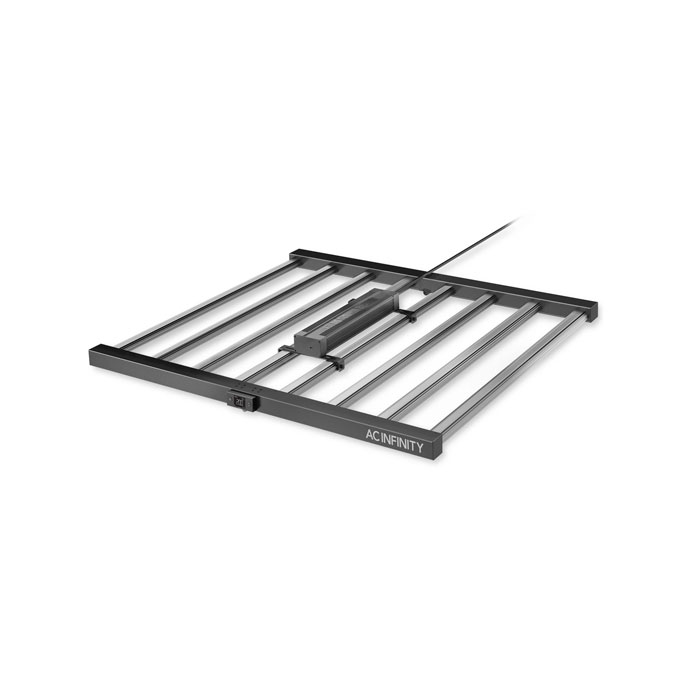

The IONFRAME EVO8 is a premium indoor plant grow light designed to optimize growth rates and maximize yields in grow tents and commercial grow spaces. It utilizes industry-leading Samsung LM301H EVO diodes, delivering superior brightness and efficiency compared to previous generations, backed by a higher blue spectrum output.

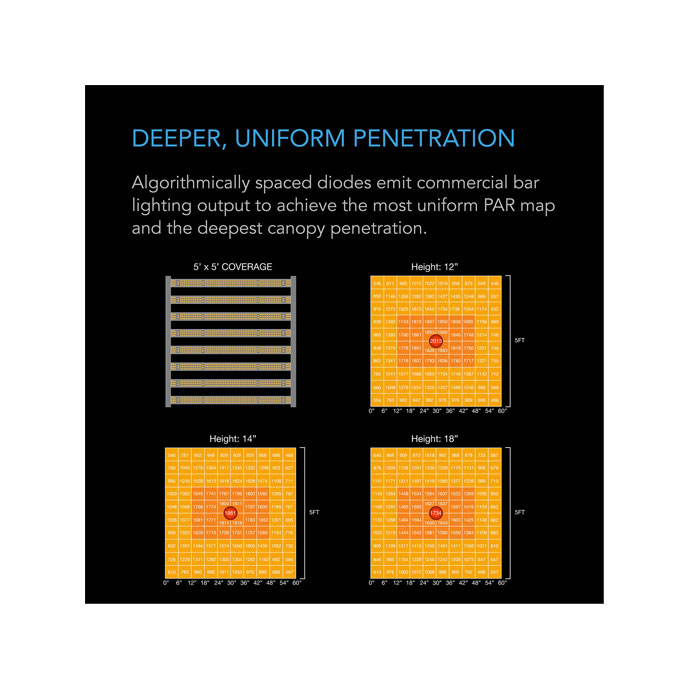

The diodes are algorithmically positioned across the bar-style fixture to ensure perfectly even light distribution, effectively diminishing hotspots while achieving deep canopy penetration.
Its robust steel and aluminum frame provides passive cooling, featuring a modular, removable driver that can be mounted outside the grow space to balance heat dissipation.
The included smart schedule controller provides 10 intensity levels and a cyclic sunrise/sunset mode, and the fixture fully integrates into the UIS ecosystem for complete environment automation.
Key Features:
- Samsung LM301H EVO Diodes: The pinnacle of horticulture lighting technology, delivering an exceptional efficiency of 3.14 µmol/J per diode
- Target-Spectrum Full Output: Supported by specialized OSRAM 660 nm (Deep Red), 730 nm (Far-Red), and Seoul 395 nm (UV) diodes to boost all stages of vegetative and flowering growth
- Removable LED Driver: Modular design allows the SOSEN driver to be mounted remotely outside the tent to significantly reduce ambient heat
- Smart Schedule Control: Features 10 brightness levels and a gradual Sunrise/Sunset setting to accurately replicate natural sun movement
- UIS Platform Compatible: Connects seamlessly with advanced AC Infinity UIS controllers (e.g., Controller 69 Pro) for smart WiFi/Bluetooth app integration

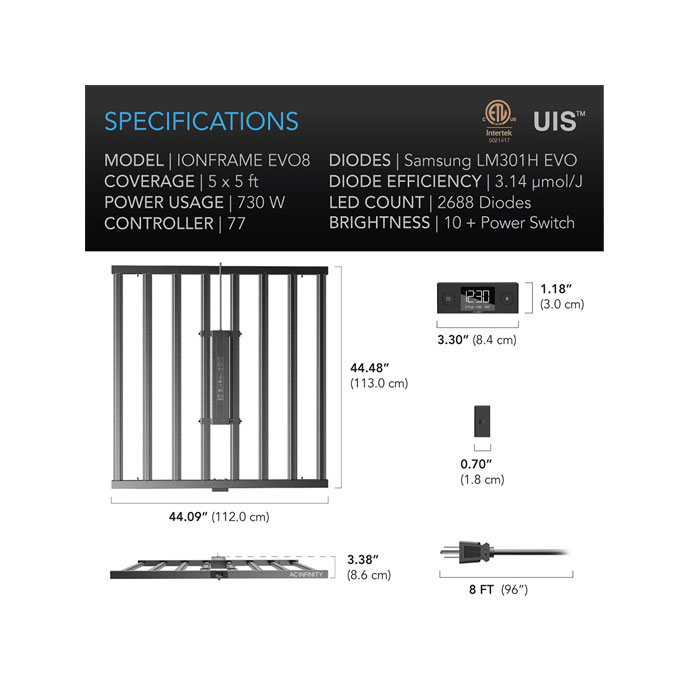

Technical Specifications:
- Wattage: 730 W
- LED Driver: SOSEN-730W
- Vegetative Coverage: 6 x 6 ft (183 x 183 cm)
- Flowering Coverage: 5 x 5 ft (152 x 152 cm)
- PPFD Value: 2013 µmol/m²/s
- Diode Efficiency: 3.14 µmol/J
- Total Chip Count: 2688 (Samsung LM301H EVO 3000K & 5000K, Seoul UV 395nm, OSRAM 660nm & 730nm)
- Voltage: 100-277V AC (50/60 Hz)
- Current: 7.3 A
- Light Dimensions: 44.09 x 44.48 x 3.38 in (112.0 x 113.0 x 8.6 cm)
- Driver Dimensions: 7.16 x 1.57 in (18.2 x 4.0 cm)
- Waterproof Rating: IP-65
- Life Expectancy: 50,000 Hours
- Operating Temperature Range: 32 to 140°F (0°C to 60°C)
- Operating Humidity Range: 35 to 85% RH
Applications:
- Designed for 5 x 5 ft (152 x 152 cm) or larger grow tents and high-yield cultivation environments
- Professional and hobbyist indoor horticulture requiring maximum PPFD output
- Full-cycle cultivation spanning from seedling through vegetative and flowering stages
- Large scale commercial setups utilizing daisy-chain linear arrangements (up to 80 lights)
